The 84 Engineering Strap On Surface Grinder Attachment (SOSG) suits:



(Tool Arm available separately for each model).



This attachment enables you to accurately and consistently grind a flat or tapered surface over the length of a workpiece. It can be used for flattening steel and handle scales, distal tapers on blades, tapering tangs on blades, descaling, shortcut your hand sanding, and final thicknessing with very accurate control.



Key Features of The Surface Grinder Include:

  • Vernier type thickness adjustment facilities for precise stock removal
  • Integrated dial indicator mount (suits 25mm Travel Dial Gauge with an 8mm diameter clamping stem
  • Simple, repeatable variable taper setting
  • 300mm x 50mm magnetic chuck
  • 420mm of total travel
  • Smooth Contact Wheel (90 Shore for more precise control)
  • Large adjustable hand levers
  • Quick initial installation, then no tools required
  • Can be adapted easily to any Tool Arm/Post Belt Grinder



The Surface Grinder is designed as a straight fit to the SM2000, SM-72, SM-48 and Gibson 72 Belt Grinders with the appropriate tool arm (available separately) or can be simply adapted to other "Tool Arm" grinders or custom drives.



Also available in the USA through Alec Steele Co and Australia via Artisan Supplies.

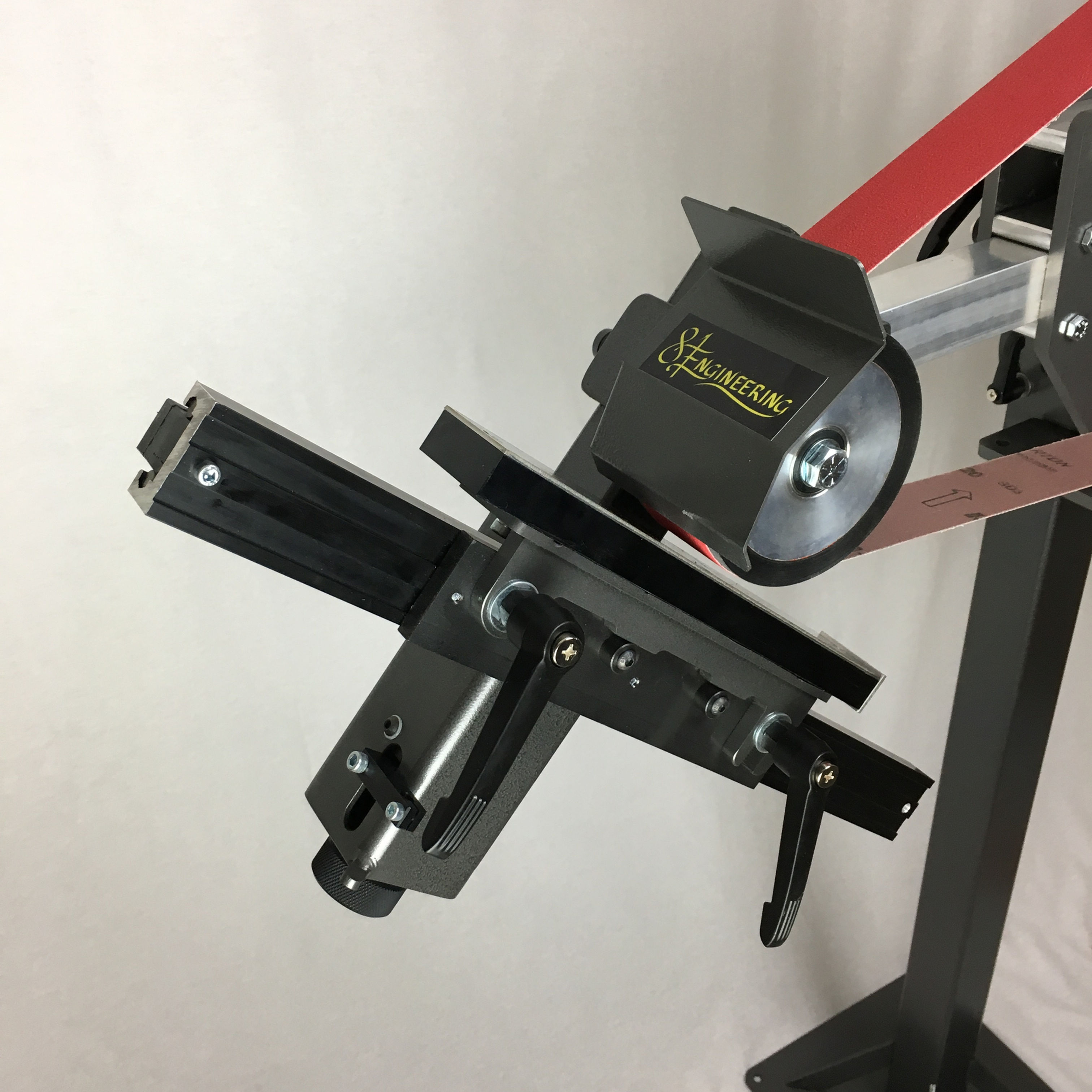

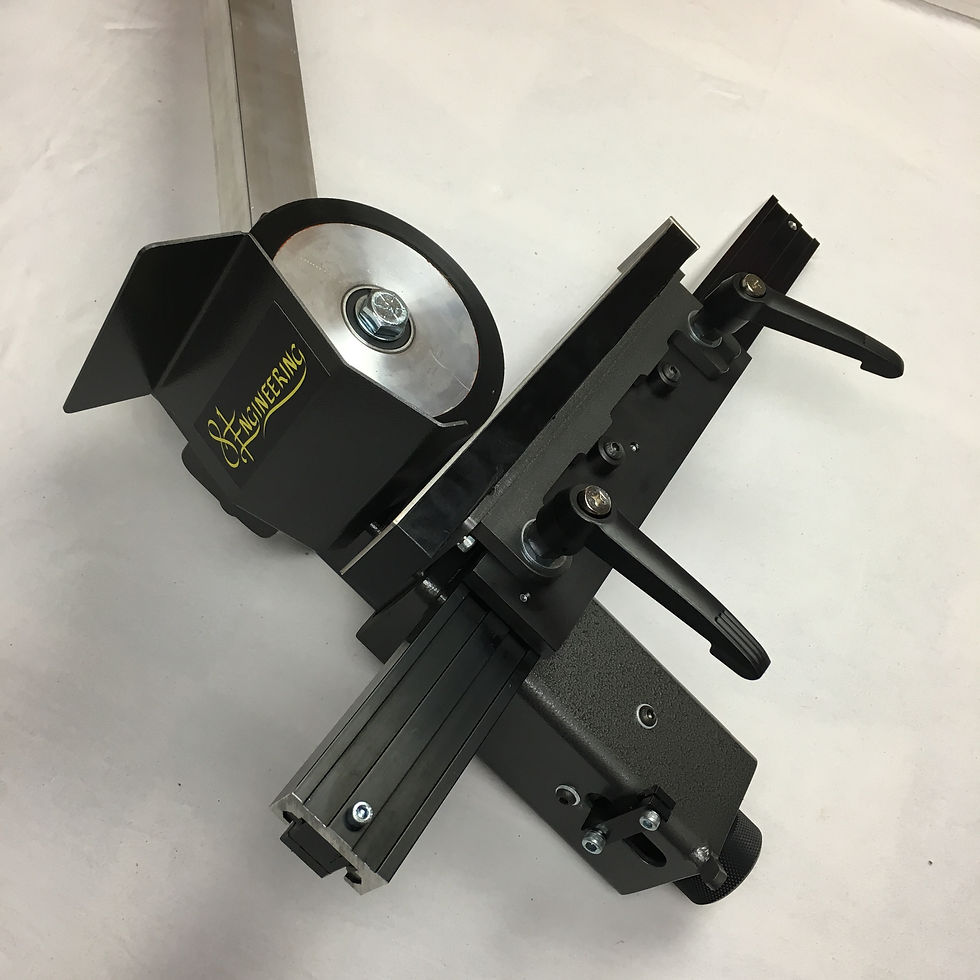

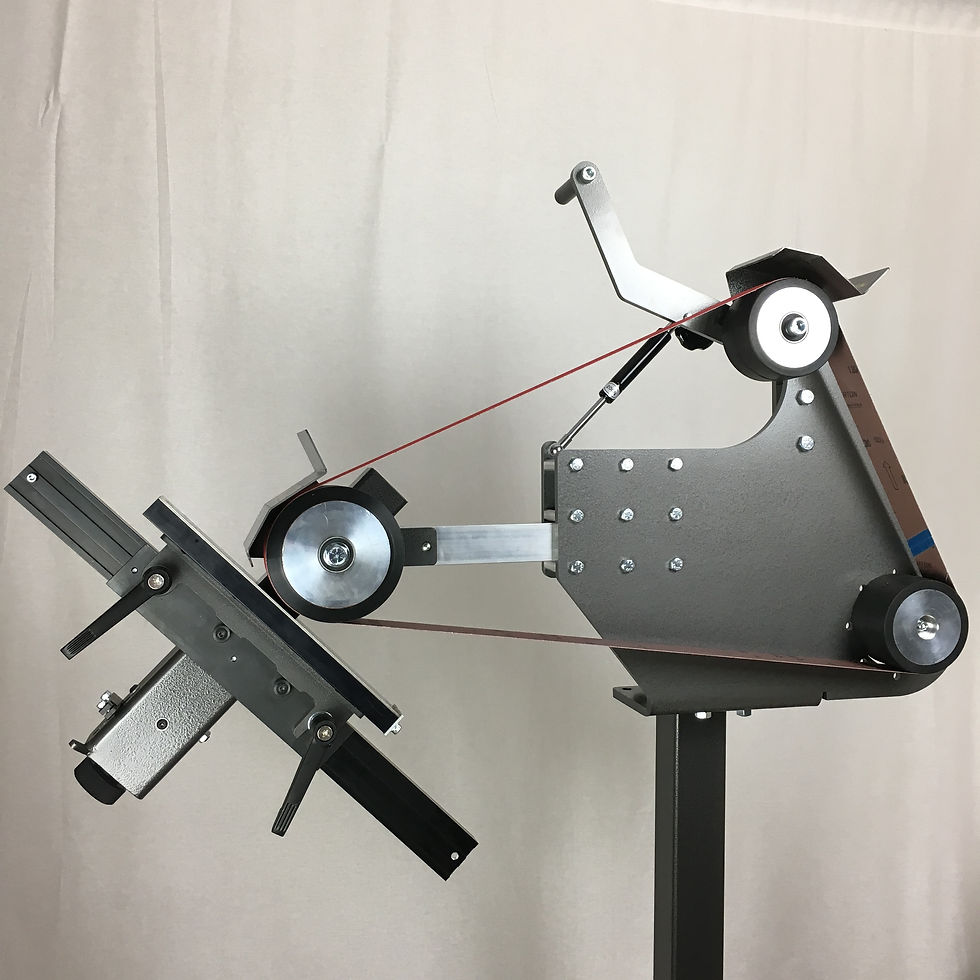

Strap on Surface Grinder Attachment (SOSG)

SKU: SOSG-VAR-0-1-EU
£975.00Price
Excluding VAT
Order now and pay later (select "Manual Payment" during checkout - Please email us for an ETA - grab 10% off belts with coupon “Thankyou10%Belts” whilst you are at it :-)
