Invest in quality and buy for life! This new and improved design 84 Engineering Shop Master 2x72" (50mmx1830mm) Belt Grinder (also known as the 2x72" Steele Grinder) matched with a 240v fully wired 1.5kw Variable Speed Drive and motor is the solid foundation to your grinding future.



A 2x72 Belt Grinder That's Built to Last........with 15% off abrasives for life! YES! Request your coupon code.



When you invest in an 84 Engineering Belt Grinder you are setting yourself up with a seriously robust and highly featured foundation of a very functionally expandable machine...it is designed to last the test of time and grow with you! So no matter where your grinding vision takes you, this is the machine to get you there, and if you want to push your boundaries then you only need to pick from the fully developed functional accessories to help you evolve.



With the Quick Change tooling system you don’t need to spend time unbolting, scavenge parts or making modifications just to achieve basic additional functionality - just get on and grind!



So if you have outgrown (or are done tolerating) your existing grinder, or just take the "buy for life" approach to equipment, then take a very close look and compare your options - carefully!........and if in doubt, contact us to check.


Usually in stock and ready to ship.



The SM-72 is available in various formats - please see below for details and make your selection on the drop down menu.



All variants of the SM-72 have the following key features:

  • Very refined robust design
  • High quality components, materials and manufacture
  • Full range of professional accessories designed to integrate seamlessly (optional extras)
  • Horizontal Tilt with either optional Bench or Height Adjustable Floor Stand (optional extras)
  • 2 separate Quick Release Tool Arm slots for accessory and Tool Arm positioning versatility
  • Auto lock "down" tensioner for ease of belt fitting
  • Gas strut for consistent tension
  • Single handed fine control Belt Tracking
  • Nitrile Wheels for superior grip and quieter smooth operation
  • Removable 360 degree Rotating Platen Frame assembly, including;
  •      - Mounted on a solid Tool Arm with Quick Release Pin system
  •      - 50mm and 75mm Nitrile Contact Wheel and fixing location for (optional extra) 125mm Contact Wheel
  •      - 3 Slack Belt lengths (with optional 125mm Contact Wheel) accessed by quick rotation of Platen Frame (Belt tension can also be varied)
  •      - Adjustable and removable Flat Platen (215mm long, 15mm thick, reversable to extend useful life)
  • Separate Quick Release Tool Arm Work Rest for ease of positioning at each Contact Wheel or complete removal.
  • No tools required to track or change functional accessories during operational setups
  • Spark Guard
  • 100mm keyed Drive Pulley enabling 24m/s (4700ft/min) Belt Speed (on a 2 pole motor at 80Hz)
  • Consistent alignment and rigitity with integrated motor mount design accepting 1.5kw or 2.2kw 90 Frame electric motors
  • Professionally powder-coated for life long protection and easy cleaning.



This machine is designed to use as a solid base to add purpose designed Quick Release accessories and evolve with your developing needs and skills.



Some accessories available for our 2x72 belt grinder are:

  • Surface Grinder Attachment
  • Fixed or Variable speed motors - VSD's pre programmed and professionally wired
  • 36", 48" and 72" water cooled Radius Platens
  • Height Adjustable Tilting Floor and Bench Stand enabling vertical or horizontal operation
  • Universal Work Rest; angle, height, rotation adjustable
  • Contact Wheels: 12", 10", 8”, 5”, 1”, ¾”, ½”, ¼”
  • See 84 Engineering Section for more.



As with any equipment builds, it is recommended that you risk assess your work environment and practices and take measures to eliminate hazards and minimise residual risks.

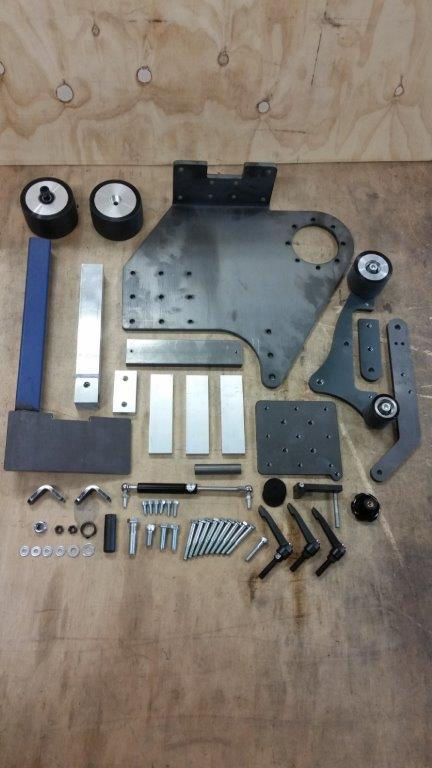

2x72 Belt Grinder: Shop Master SM-72 (50mm x 1830mm)

PriceFrom £695.00
Excluding VAT
